PowMr 60A MPPT Solar Charge Controller Support Parallel 12 Negotiable

PowMr 2024 New 100% Mppt 60A Solar Charge Controller 12v-48v Auto 160vdc lcd fan Support Parallel Up to 12 Units Support Lead Acid Lithium Battery Temperature Compensation

• About Solar: Solar power systems offer a practical solution to the high cost of living and the energy crisis. It can provide a constant source of power support for a home or commercial premises. After installing a solar power system, you can utilize the solar panels on your own roof or open space to convert sunlight into electricity for various power needs.
• 1. Solar power systems offer an efficient and environmentally friendly solution when faced with the challenge of the rising cost of living. By utilizing solar energy, an inexhaustible natural resource, we can significantly reduce energy expenses for our homes and businesses.
• 2. As energy prices continue to rise, the financial strain of traditional energy sources has become a major issue for many households and businesses. However, the emergence of solar energy systems has brought a whole new approach to solving this dilemma. Solar panels convert sunlight into electricity, and when installed on a rooftop or open ground, they can provide a stable and reliable supply of electricity to homes and businesses. This not only drastically reduces reliance on traditional power supplies, but also effectively lowers electricity bills in the long run.
• 3. The benefits of choosing solar go beyond reducing energy costs. Solar systems are relatively simple to install and maintain, and while the initial investment is high, it can bring significant financial returns in the long run. With modern technology, such as the introduction of smart inverters and high-efficiency batteries, the performance and affordability of solar systems have been further enhanced, making them increasingly cost-effective.

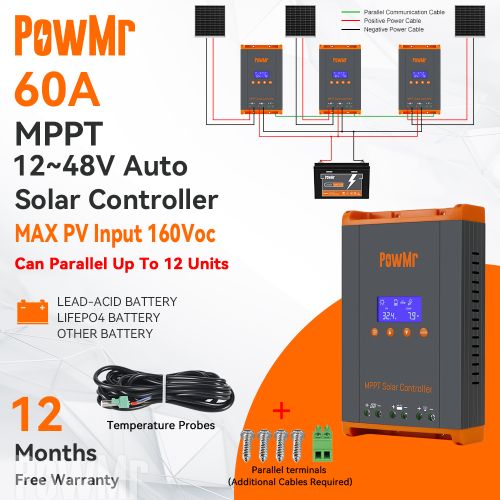

Note1:This is our latest 60A MPPT solar charge controller, which supports up to 12 machines in parallel, and is equipped with parallel terminals and temperature probes

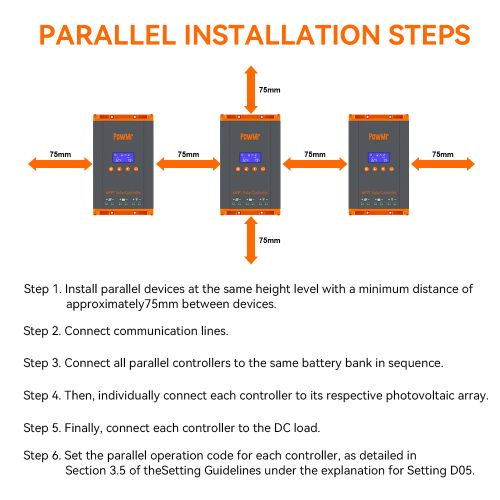

Note2:Each of our controllers is equipped with parallel terminals, but customers need to prepare their own parallel wires, and the wires do not have any requirements, as long as they can be connected and energized, they can be used.

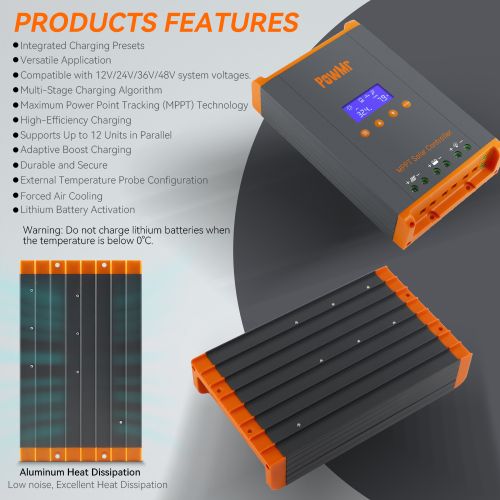

Features :

1 Built-in preset loads.

2Compatible with 12V/24V/36V/48V system voltage.

3 Multi-stage charging algorithm Maximum power point tracking technology.

4High-efficiency charging, tracking efficiency up to 99.9%, maximum conversion efficiency up to 97%.

5 Supports up to 12 parallel units

6Adaptive boost charging, durable and safe

7External temperature probe

8Forced air-cooling and built-in cooling fan heat dissipation, improve the overall operating efficiency of the equipment.

9Lithium battery activation.

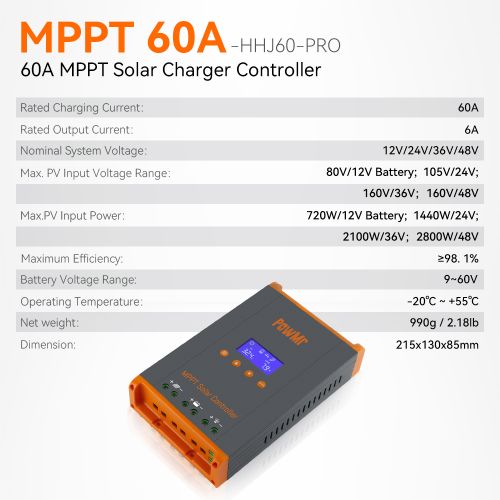

Specifications:

Model: HHJ60A -PRO

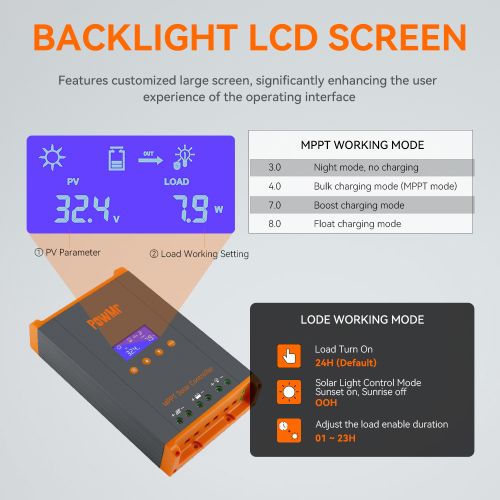

Display type: LCD display

Voltage: 12V/24V/36V/48V

automatic Current: 60A

Maximum photovoltaic voltage: 160V

Maximum photovoltaic power: 720W/12 V,1440W/24V,2160W/36V,2880W/48V

Housing material: aluminum alloy

Charging mode: MPPT

Dynamic response recovery time: 100us

Integral efficiency: 98.1%

Utilization rate of PV module: 99%.

Maximum input voltage limit: DC160V

Product weight: 990g

Item size: 215x130x85mm

https://img.lazcdn.com/g/p/4c4e6bc7a2e59805a6cde61334e24d8b.jpg_2200x2200q80.jpg_.webp" alt="image" style="border-style: none; display: inline; max-width: 100%; margin: 0px; padding: 0px; height: 1000px; width: 1000px;">

https://img.lazcdn.com/g/p/eeaec8664c7b1e6e1340854c162a5ffa.jpg_2200x2200q80.jpg_.webp" alt="image" style="border-style: none; display: inline; max-width: 100%; margin: 0px; padding: 0px; height: 1000px; width: 1000px;">

https://img.lazcdn.com/g/p/b78752d8245060b83c0ee2fd874d2f34.jpg_2200x2200q80.jpg_.webp" alt="image" style="border-style: none; display: inline; max-width: 100%; margin: 0px; padding: 0px; height: 1000px; width: 1000px;">

https://img.lazcdn.com/g/p/943b379dba41dd2449751bff3e4fe9be.jpg_2200x2200q80.jpg_.webp" alt="image" style="border-style: none; display: inline; max-width: 100%; margin: 0px; padding: 0px; height: 1000px; width: 1000px;">

https://img.lazcdn.com/g/p/034da6f992b42b5bdc830339afbf5c7e.jpg_2200x2200q80.jpg_.webp" alt="image" style="border-style: none; display: inline; max-width: 100%; margin: 0px; padding: 0px; height: 1000px; width: 1000px;">

https://img.lazcdn.com/g/p/cb18502fab5f128cc4b060fe867ed051.jpg_2200x2200q80.jpg_.webp" alt="image" style="border-style: none; display: inline; max-width: 100%; margin: 0px; padding: 0px; height: 1000px; width: 1000px;">

https://img.lazcdn.com/g/p/08a6d57f171c4a30f441731e34c54c72.jpg_2200x2200q80.jpg_.webp" alt="image" style="border-style: none; display: inline; max-width: 100%; margin: 0px; padding: 0px; height: 1333px; width: 1333px;">

https://img.lazcdn.com/g/p/8612b98968ef01a848b465fb424d7b64.png_2200x2200q80.png_.webp" alt="image" style="border-style: none; display: inline; max-width: 100%; margin: 0px; padding: 0px; height: 768px; width: 587px;">

https://img.lazcdn.com/g/p/a2985af43f226bda7571ff4fcf667bc1.png_2200x2200q80.png_.webp" alt="image" style="border-style: none; display: inline; max-width: 100%; margin: 0px; padding: 0px; height: 375px; width: 588px;">

https://img.lazcdn.com/g/p/24e637fe75c5476029b132cec7f65b8d.jpg_2200x2200q80.jpg_.webp" alt="image" style="border-style: none; display: inline; max-width: 100%; margin: 0px; padding: 0px; height: 1333px; width: 1333px;">

• Integrated charging presets
• Compatible with 12V/24V/36V/48V system voltages.
• Multi-stage charging algorithm
• Maximum power point tracking technology
• Efficient charging, tracking efficiency up to 99.9%, peak conversion efficiency up to 97%
• Up to 12 parallel machines are supported
• Adaptive Boost Charging
• Long-lasting and secure
• Configure an external temperature probe
• Forced air cooling, built-in cooling fan forced heat dissipation, improve the overall operation efficiency of the device.
• Lithium battery activation

• Controller*1
• Mounting Screw*1
• Temperature Probe*1
• Manual*1
• Parallel Terminal*1

SKU: PO442GP4BUQ7UNAFAMZ

Product Line: PowMr

Model: HHJ60-PRO

Production Country: China

Size (L x W x H cm): 21.5 x 13 x8.5

Weight (kg): 1.6

Certifications: Eco Friendly

Color: orange

Main Material: Metal
