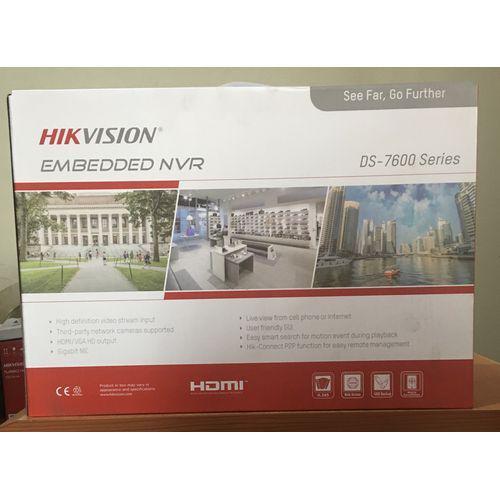

Hikvision EMBEDDED NETWORK VIDEO RECORD (NVR) Negotiable

Description

Up to 8-ch IP camera inputs

H.265+/H.265/H.264+/H.264 video formats

Up to 2-ch@8 MP or 4-ch@4 MP or 8-ch@1080p decoding capacity

1 HDMI and 1 VGA interfaces: both interfaces support independent video output

1 SATA interfaces for HDD connection (up to 10 TB capacity per HDD)

Up to 80 Mbps incoming bandwidth

Plug-and-play with 8 power over Ethernet (PoE) interfaces

Specifications

Video/Audio Input

IP Video Input8-ch

Incoming Bandwidth80 Mbps

Outgoing Bandwidth160 Mbps

HDMI Output4K (3840 × 2160)/30 Hz, 2K (2560 × 1440)/60 Hz, 1920 × 1080/60 Hz, 1600 × 1200/60 Hz, 1280 × 1024/60 Hz, 1280 × 720/60 Hz

VGA Output1920 × 1080/60 Hz, 1280 × 1024/60 Hz, 1280 × 720/60 Hz

Video Output ModeHDMI/VGA independent output

Audio Input1-ch, RCA (2.0 Vp-p, 1 KΩ)

Audio Output1-ch, RCA (Linear, 1 KΩ)

Two-Way Audio1-ch, RCA (2.0 Vp-p, 1kΩ, using the audio input)

Network

Remote Connection128-ch

Network ProtocolTCP/IP, DHCP, IPv4, IPv6, DNS, DDNS, NTP, RTSP, SADP, SMTP, SNMP, NFS, iSCSI, ISUP, UPnP™, HTTP, HTTPS

Network Interface1 RJ-45 10/100/1000 Mbps self-adaptive Ethernet interface

Decoding

Decoding FormatH.265/H.265+/H.264/H.264+

Recording Resolution12 MP/8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF

Synchronous Playback8-ch

Decoding Capability1-ch@12 MP (30 fps)/2-ch@8 MP (30 fps)/4-ch@4 MP (30 fps)/8-ch@1080p (30 fps)

Stream TypeVideo, Video & Audio

Audio CompressionG.711ulaw/G.711alaw/G.722/G.726

External Interface

SATA 21SATA interfaces

CapacityUp to 10 TB capacity for each HDD

USB InterfaceFront panel: 1 × USB 2.0; Rear panel: 1 × USB 2.0

Alarm In/Out4/1

POE

Interface8, RJ-45 10/100 Mbps self-adaptive Ethernet interface

Power≤ 120 W

StandardIEEE 802.3 af/at

General

Power Supply48VDC，2.5A

Consumption≤ 15 W (without HDD and PoE off)

Working Temperature-10 °C to 55 °C (14 °F to 131 °F)

Working Humidity10 to 90 %

Dimension (W × D × H)385 × 315 × 52 mm (15.2″ × 12.4″ × 2.0″)

Key Features

Up to 8-ch IP camera inputsH.265+/H.265/H.264+/H.264 video formatsUp to 2-ch@8 MP or 4-ch@4 MP or 8-ch@1080p decoding capacity1 HDMI and 1 VGA interfaces: both interfaces support independent video output1 SATA interfaces for HDD connection (up to 10 TB capacity per HDD)Up to 80 Mbps incoming bandwidthPlug-and-play with 8 power over Ethernet (PoE) interfaces

What’s in the box

Hikvision EMBEDDED NETWORK VIDEO RECORD (NVR)

Specifications

SKU: HI902CM4U9W0ONAFAMZ

Product Line: 4way

Model: : DS-7608NI-KI/8P Weight (kg): 3

Color: Black

Main Material: Iron
