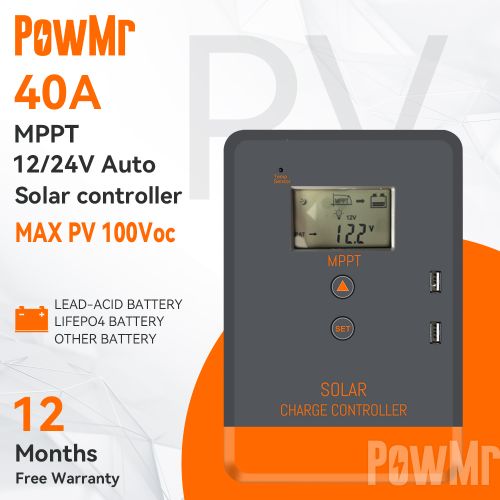

PowMr 40A MPPT Solar Charger Controller 12V 24V 100Vdc Negotiable

PowMr MPPT Solar Charger Controller 40A 12V 24V Solar Panel Regulator 100V PV INPUT LCD Display Various Load Control Modes POW-Keeper1240

• About Solar: Solar power systems offer a practical solution to the high cost of living and the energy crisis. It can provide a constant source of power support for a home or commercial premises. After installing a solar power system, you can utilize the solar panels on your own roof or open space to convert sunlight into electricity for various power needs.
• 1. Solar power systems offer an efficient and environmentally friendly solution when faced with the challenge of the rising cost of living. By utilizing solar energy, an inexhaustible natural resource, we can significantly reduce energy expenses for our homes and businesses.
• 2. As energy prices continue to rise, the financial strain of traditional energy sources has become a major issue for many households and businesses. However, the emergence of solar energy systems has brought a whole new approach to solving this dilemma. Solar panels convert sunlight into electricity, and when installed on a rooftop or open ground, they can provide a stable and reliable supply of electricity to homes and businesses. This not only drastically reduces reliance on traditional power supplies, but also effectively lowers electricity bills in the long run.
• 3. The benefits of choosing solar go beyond reducing energy costs. Solar systems are relatively simple to install and maintain, and while the initial investment is high, it can bring significant financial returns in the long run. With modern technology, such as the introduction of smart inverters and high-efficiency batteries, the performance and affordability of solar systems have been further enhanced, making them increasingly cost-effective.

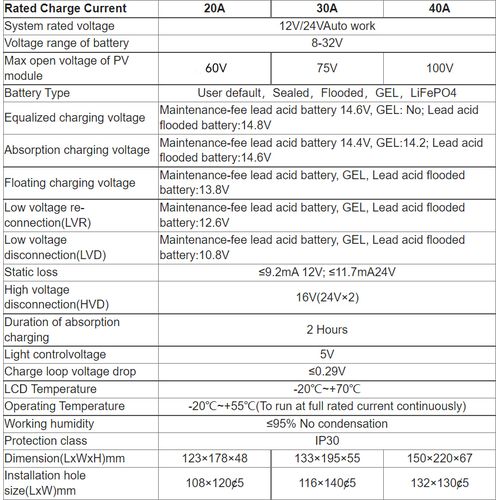

• Technical characteristics:
• Model:POW-Keeper1240
• Type: MPPT
• Rated voltage: 12/24V automatic
• Rated current: 40A
• PV input power: 12V:480W, 24V:960W
• System voltage: Adaptive 12/24V
• Load current rating: 40A
• Solar PV voltage: 100Voc Optional battery types (sealed by default): user preset, sealed, flooded, LiFePo4
•

• Feature:

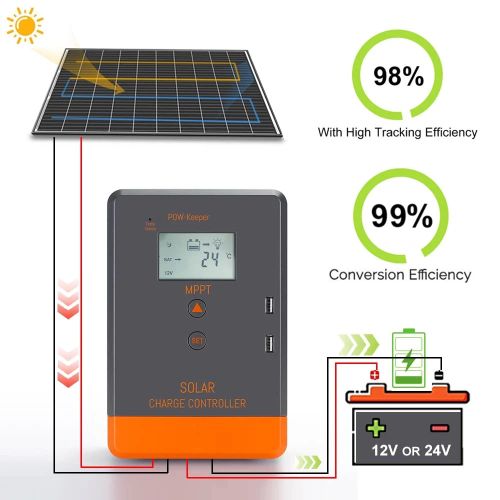

•  1.MPPT maximum power point tracking technology is advanced and the tracking efficiency is not less than 99.5%.
•  2.Using high quality components, improve system performance, maximum conversion efficiency can reach 97%.
• 3. 12/24V automatic voltage recognition.
• 4.Battery temperature compensation function.
•  5.Power statistics recording function.

Advantage:

1.All kinds of real-time data are displayed on one screen, which is convenient for users to see.

2.The input voltage of solar panel is up to 100V, which is suitable for various specifications of solar panels.

3.The power supply adopts ultra-low power chips, which reduces standby static power consumption and power loss.

4.2 Pcs 5V USB outputs for charging cell phones.

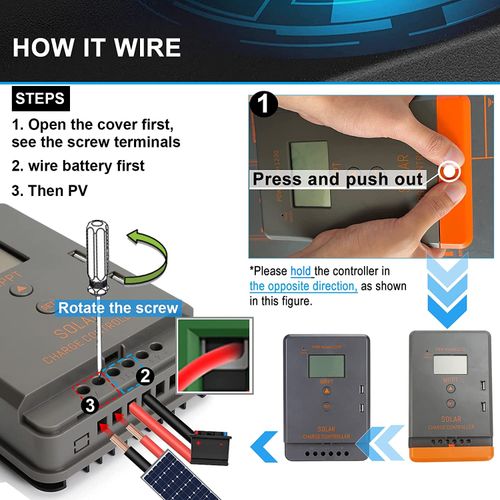

Note:Please connect the battery first, set the system parameters before connecting the solar panel, if not in order, it will damage the battery.

Ask:How to set the battery type?

Reply:

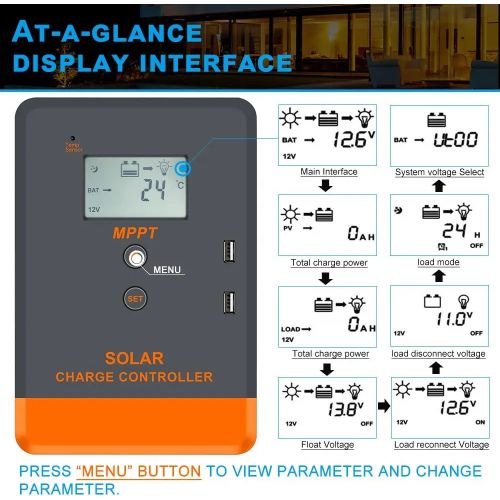

(1) Under the main interface, press and hold the "MENU" button for 3 seconds to enter the setting page, and then press the "MENU" key to switch to the battery type page (user mode 1).

(2) After entering the battery type page (user mode 1), press and hold the "MENU" key for 3 seconds to enter the battery type selection page, and press the "MENU" key or "SET" key to switch the battery type option between sealed battery, flooded battery, and lithium battery.

https://img.lazcdn.com/g/p/28f2d82d8d9af120a777f3d7600d3f3b.jpg_2200x2200q80.jpg_.webp" alt="image" style="border-style: none; display: inline; max-width: 100%; margin: 0px; padding: 0px; height: 584px; width: 944px;">

Thank you for selecting MPPT series solar charge controller with the most advanced MPPT control algorithm and the maximum power point of the pv array can be quickly tracked in any environment so that it can get the maximum energy from the solar panel and significantly improve the utilization of energy in solar system. The machine has the dual display function of LCD and Remote header (optional) and standard communication interface, convenient for user extension application and satisfy different monitoring needs to the maximum extent. It can be used in communication base station, home power supply system, traffic light, solar street lamp, courtyard lamp systems, etc.

https://img.lazcdn.com/g/p/bf2f56438f6a97c98272191e064698a5.jpg_2200x2200q80.jpg_.webp" alt="image" style="border-style: none; display: inline; max-width: 100%; margin: 0px; padding: 0px; height: 851px; width: 839px;">

https://img.lazcdn.com/g/p/afb8e4f2aaeef645ea30333e9519204a.jpg_2200x2200q80.jpg_.webp" alt="image" style="border-style: none; display: inline; max-width: 100%; margin: 0px; padding: 0px; height: 1000px; width: 1000px;">

https://img.lazcdn.com/g/p/2428f84a8c7fc2654bdb2bb09fffdc68.jpg_2200x2200q80.jpg_.webp" alt="image" style="border-style: none; display: inline; max-width: 100%; margin: 0px; padding: 0px; height: 1000px; width: 1000px;">

https://img.lazcdn.com/g/p/2046f291a064dcae06ec14428d0e2950.jpg_2200x2200q80.jpg_.webp" alt="image" style="border-style: none; display: inline; max-width: 100%; margin: 0px; padding: 0px; height: 1000px; width: 1000px;">

https://img.lazcdn.com/g/p/fcf24e94ac2bc9043cde3dba7dde5449.jpg_2200x2200q80.jpg_.webp" alt="image" style="border-style: none; display: inline; max-width: 100%; margin: 0px; padding: 0px; height: 946px; width: 1000px;">

https://img.lazcdn.com/g/p/ffca9c880f150d1e250fbec972b8099a.jpg_2200x2200q80.jpg_.webp" alt="image" style="border-style: none; display: inline; max-width: 100%; margin: 0px; padding: 0px; height: 1500px; width: 1500px;">

https://img.lazcdn.com/g/p/d22919489e0fde71d653ba6c2f3dcfc5.jpg_2200x2200q80.jpg_.webp" alt="image" style="border-style: none; display: inline; max-width: 100%; margin: 0px; padding: 0px; height: 984px; width: 1000px;">

https://img.lazcdn.com/g/p/9c8816f904d0262eceec2c7d3bc0b337.jpg_2200x2200q80.jpg_.webp" alt="image" style="border-style: none; display: inline; max-width: 100%; margin: 0px; padding: 0px; height: 1600px; width: 1600px;">

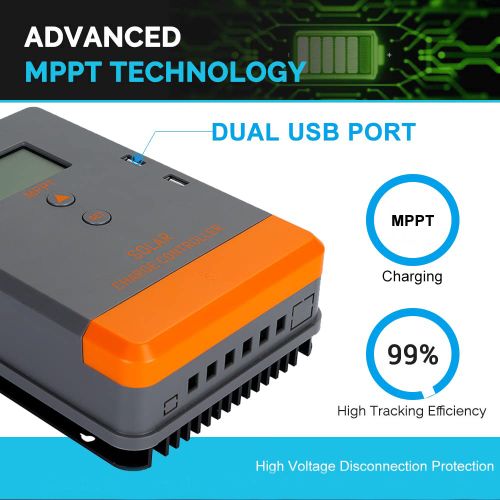

• Advanced MPPT maximum power point tracking technology, the tracking efficiency is no less than 99.5%.
• High quality components are used to improve the system performance, and the maximum conversion efficiency can reach97%.
• Super fast maximum power tracking speed while ensuring tracking efficiency.
• Accurate identification and tracking of the maximum power point of multi-wave peak.
• Reliable maximum input power of pv array to ensure the safety of equipment.
• Wide pv array maximum power point operating voltage range.
• 12/24v automatic voltage identification
• The LCD is designed to dynamically display the operation data and working status of the equipment.

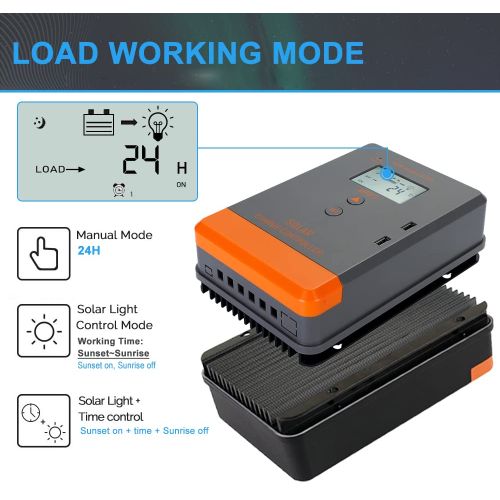

• Various load control modes: general mode, light control mode, dual time mode, pure charger mode and timing mode.
• Seal,  Flooded, LifePO4 and Li(NiCoMn)O2 charging process can be selected.
• The function of battery temperature compensation.
• Power statistics recording function.
• Use the RS485methods to maximize the communication needs of different occasions.
• Support PC monitor, external display unit and other peripherals, realize real-time data view and parameter setting function.

SKU: PO442GP4M1SFWNAFAMZ

Product Line: PowMr

Model: POW-Keeper1240

Production Country: China

Size (L x W x H cm): 15 x 22 x 6.7

Weight (kg): 1.67

Certifications: Eco Friendly

Color: orange

Main Material: Metal

From the Manufacturer: 1

Care Label: 1
