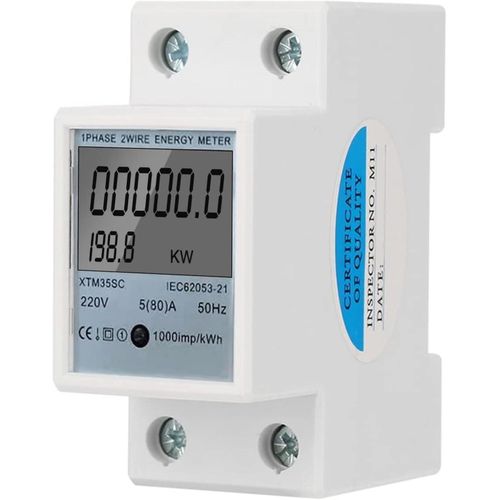

Single Phase Energy Power Check Meter/ Prepaid Meter Reader 80A Negotiable

Product Details

Description

Installazion and use:

An experienced electrician or professional is required to install the electric energy meter and be sure to read this manual.

The electric energy meter should be installed in a ventilated and dry place indoors, using a standard 35mmdin rail installazion. The bottom plate of the electric energy meter should be fixed on a solid fireproof and non-vibratory wall.

When the electric energy meter is properly connected to the network, the power indicator of the electric meter is always on.

When the electric energy meter is used in areas with more lightning, lightning protection measures should be taken to prevent damage to the electric energy meter due to lightning strikes.

The load capacity of the electric energy meter is between 0.05ib-iMax (direct connection type)

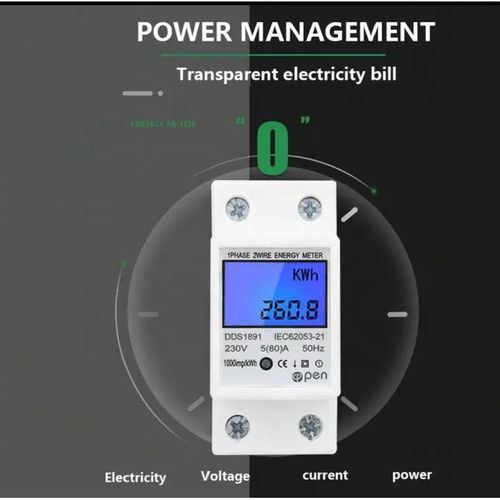

Data display: LCD screen

Power indicator: when the green light is on, it means that the working power of the electric energy meter is normal

Pulse indication: when the red light is on, it means that the pulse of electrical energy is detected.

When there is a sampling signal, the pulse light is on for about 80ms.

Key Features

【Application Range】This instrument is suitable for measuring single phase communication with a nominal frequency of 50Hz or 60Hz, which is fixed in the room.

【Standard Rail Installztion】: Single phase electric meter 35mm standard DIN rail installazion, which meets DIN EN50022 standard. BioPlasit Width, conforms to DIN43880 standard.

【Multi-function】Standard configuration 5+1 digit display (99999.1kwh) LCD. Optional function (display voltage, current, power, frequency, power factor).

【Safety Protection】: Measure a single track and two lines can be consumed. Safety protection, this has nothing to do with the direction of flow of the load current. Comply with GB/T17245.321-2008 standards.

【Precautions】: Built-in digital energy meter terminal cover, beautiful and generous. The applicable environmental temperature does not exceed -25℃-+55℃, and the relative humidity does not exceed %. The air does not contain corrosive gases, avoiding the effects of dust, condensation and insects.

Specifications

SKU: GE779IP75SSDFNAFAMZ

Product Line: vtec

Production Country: China

Weight (kg): 0.98

Certifications: Eco Friendly

Color: White

Main Material: ABS
