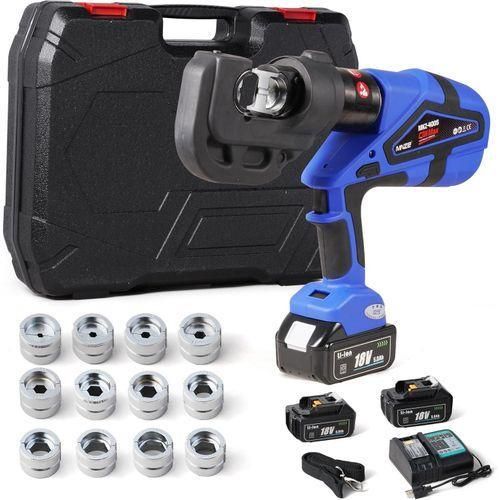

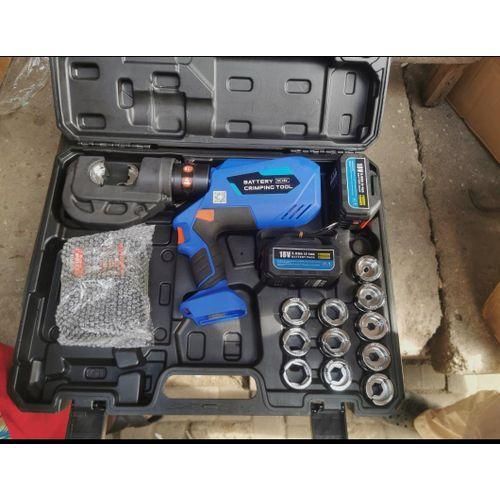

Electric Hydraulic Cable Lug Crimper Pliers Rechargeable Crimping Tool 12 Ton 16mm to 400mm (MZ-MKZ-400) Negotiable

Product Details

Description

Crimping Force120KN

Stroke42mm

Crimps per charge120 times (Cu 150mm2 )

Crimping cycle6-18s (depends on the size of cable)

Battery voltage18V

Battery capacity3.0 Ah

Charging time2hours

Packageplastic case

Accessories

crimping Dies.16, 25, 35, 50, 70, 95, 12, 150, 185, 240, 300, 400mm2

Battery2pcs

Charger1pcs

Sealing ring of cylinder1set

Sealing ring safety valve1set

All tools can be controlled by one key-press the trigger to start working, half loosing the trigger means stop forcing pressure, loosing fully means piston return to the original position.

LCD Data Display-The Total Crimping Times, Electricity Power, Errors Info can be checked by the Display, also we can special making for customer to show the pressure if necessary.

Air Cooling Heat dissipation system to extend using.

Heads Rotates 360 degree in order to gain better access to tight corners or other difficult working areas.

Li-ion batteries do neither have a memory effect nor self-discharge. Even after long periods of non operation the tool is always ready to operate. In addition we see a lower power weight ratio with 50% more capacity and shorter charging cycles copare to NiMH batteries.

The unit is equipped with a double piston pump which is characterised by a rapid approach of the dies forwards the connector and a slow crimping motion.

Key Features

GOOD

Specifications

SKU: GE779IP7VVEG7NAFAMZ

Weight (kg): 20

Color: RED
